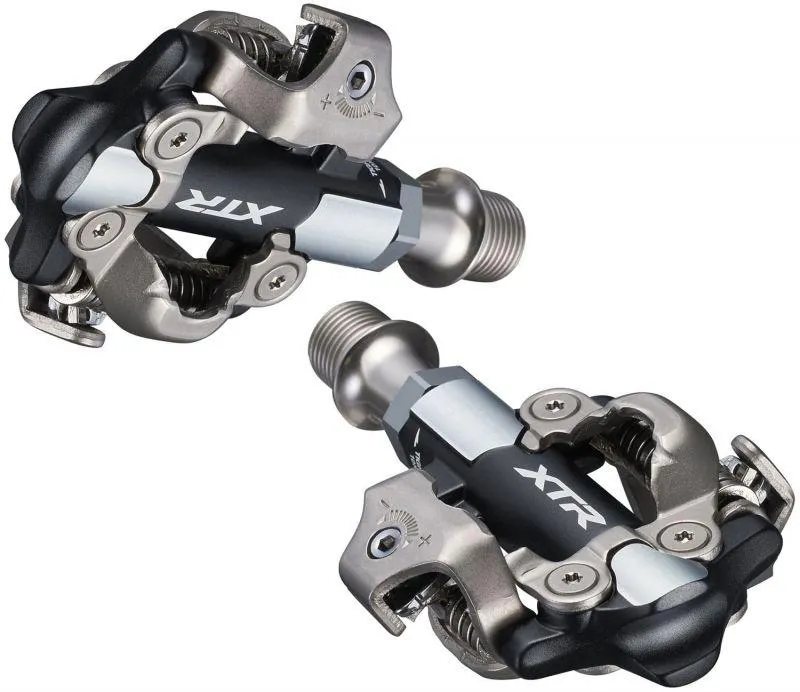

The Shimano XTR PD-M9100 pedals improve rider stability with wider edge-to-edge contact areas while improving mud shedding through rounded contact points and off-set bindings. Shimano’s Rider-Tuned design offers two axle length options including a new 3mm shorter axle to minimize the Q-factor for XC riders who are running Boost drivetrains.

This new shorter axle also matches the Q-factor of Shimano’s SPD-SL road pedals, providing a smooth transition for road riders diving into gravel. The top cross-country pedals are ergonomically optimized and have a high durability. Designed to meet the needs of the most demanding MTB races, they offer unsurpassed performance and a unique riding experience.


FEATURES

• Wider edge-to-edge contact area provides solid pedal - shoe interface and transmits power efficiently
• Cylindrical contact area sheds mud better for consistent stepping-in & out
• Efficient pedaling and better bike control
• Better mud clearance
• Stress-free pedaling
• Improved axle durability
• 2 axle length options Crank surface - Pedal center: 52mm (3mm shorter axle) / 55mm (Standard)

SPECIFICATIONS

• Use: MTB Cross Country, Race
• Group: XTR M9100
• Model: PD-M9100
• Type: Click
• Pedal system: SPD
• Binding: Dual Sided
• mechanism sealed: Yes
• Cleat retention adjuster:Yes
• Cleats: SM-SH51
• Optional cleats: SM-SH56 (Not included!)
• Optional reflector for PD-M9100: SM-PD60 (Not included)
• Optional reflector for PD-M9100-S1: SM-PD22 (Not included)
• Axle length option (choose variant)
• 3mm shorter axle (PD-M9100-S1 for Boost cranks)
• Standard (PD-M9100)
• Material
• Pedal body: Aluminum anodized
• Pedal axle: Chromoly steel
• Weight: 320g pair
